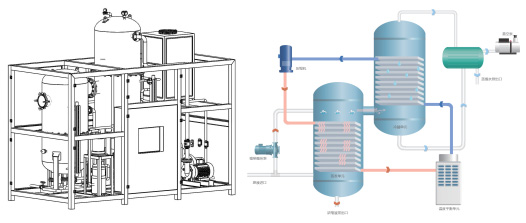

Low carbon heat pump evaporation equipment



Technical principle:

The low-carbon heat pump evaporator is mainly composed of several modules such as vacuum system, compressor system, wastewater circulation system, and automatic control system. The equipment uses negative pressure to suck materials into the evaporation chamber, and a forced circulation pump circulates and atomizes the materials, forming a water film on the heating heat exchanger; By utilizing the heat generated by the closed-loop refrigeration circuit of a heat pump, the water in the material is heated and evaporated before being condensed and separated, achieving efficient and low-carbon material separation, reducing equipment operating energy consumption, and achieving the goal of energy conservation and emission reduction.





Technical features:



(1) The dual phase utilization of heat pumps is more energy-efficient than high frequency conversion motors;

(2) 35 ° C low-temperature drive equipment has less corrosiveness, and the heat exchanger is not easy to structure, resulting in better water discharge effect and a wider range of application scenarios;

(3) Modular design with compact structure reduces equipment occupation and shorter construction period;

(4) PLC automatic control adaptive adjustment function condensate water quality monitoring 7X24h unmanned operation;





Application areas:



Metal surface treatment

Electroplating wastewater, surface cleaning wastewater, release agent wastewater, polishing wastewater



Mechanical processing industry

Grinding wastewater, acid washing wastewater, cleaning wastewater, emulsion wastewater



Chemical and pharmaceutical wastewater

Laboratory wastewater, cleaning wastewater, high salt wastewater



Garbage leachate

Landfill membrane concentration wastewater and garbage transfer wastewater



Textile printing and dyeing industry

Alkali treatment wastewater, cleaning wastewater, dye wastewater



Zero discharge of industrial wastewater

Membrane concentrated water, high salinity, high COD wastewater

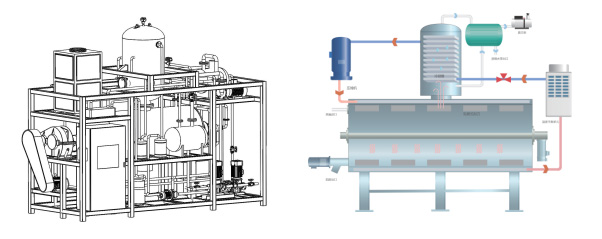

Low carbon heat pump scraper evaporation equipment

Technical principle:

The scraper evaporation equipment has a heating jacket inside the evaporation chamber shell, which is equipped with rotatable fixed blades (similar to ship paddles) inside. The inner cylinder wall is heated by high-temperature refrigerant or other heat carriers, and the liquid is added along the tangent direction from the rotating shaft side. Due to the effects of gravity, centrifugal force, and rotating scraper, the solution forms a rotating thin film on the inner wall of the evaporation chamber and is evaporated, concentrated, and crystallized during this process. Solved the problem that conventional low-carbon heat pump evaporation equipment cannot handle easily crystallized waste liquids.





Technical features:

(1) Compared to low-carbon heat pump evaporation equipment, it can cope with the evaporation and concentration of high viscosity and easily saturated crystalline substances;

(2) Skid mounted equipment with compact structure can achieve automatic discharge;

(3) Excellent water quality and effluent quality when operating at low temperatures, with simple supporting facilities;

(4) High degree of automation, capable of achieving unmanned operation;

(5) Can be used in conjunction with low-carbon heat pump evaporation equipment, resulting in lower energy consumption when used together;
